Plant List

CAD SOFTWARE

3 SEATS OF CATIA V5

CNC MACHINES

CORREA  RAPID 30 TNC640

CORREA  FP40

MAZAK VARIAXIS i-500

HERMLE C400 U

DOOSAN DNM 750L

DOOSAN DNM 750L MK2

DMG 103V

​

CMZ TA20TY640

​

5 AXIS GANTRY MILL

5 AXIS GANTRY MILL

5 AXIS MILL

5 AXIS MILL

3 AXIS VMC

3 AXIS VMC

3 AXIS VMC

​

LATHE WITH LIVE TOOLING

​

max  15,000  rpm

max    4,000  rpm

max  12,000  rpm

max  15,000  rpm

max  12,000  rpm

max  12,000  rpm

max    8,000  rpm

​

max turning dia 460mm

​

X3340mm    x     Y2350mm    x      Z1200mm

X3500mm    x     Y3000mm    x      Z1200mm

X500mm      x     Y500mm      x      Z350mm

X850mm      x     Y700mm      x      Z500mm

X2160mm    x     Y762mm      x      Z650mm

X2160mm    x     Y762mm      x      Z650mm

X1000mm    x     Y600mm      x      Z600mm



Z travel of 640mm

CAM SOFTWARE

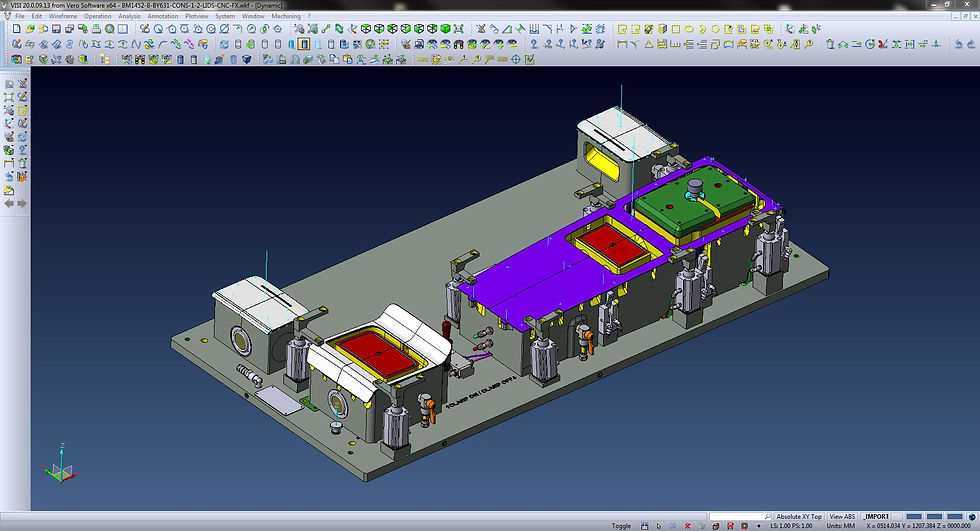

VERO VISI - 2D through to true 5-AXIS

CATIA V5  MACHINING - 2D through to true 5-AXIS

​



METROLOGY

​

CREAFORM  C - TRACK C780 (OPTICAL MOBILE CMM)

SOFTWARE – METROLOG/VX ELEMENTS (Measuring direct from CAD model)

​

MITUTOYO   CRYSTA-APEX C 9168 (GANTRY CMM)

Working area X900mm x Y1600mm x Z800mm

​

MITUTOYO   CRYSTA-APEX C  544  (GANTRY CMM)

Working area X500mm x Y400mm x Z400mm

​

SOFTWARE -- MCosmos V3.5 & CAT1000 - (Scanning and measuring direct from CAD model)



3D PRINTING

BCN3D EPSILON W50

BUILD PLATE 420mm x 300mm

BUILD HEIGHT 400mm

(Duel fillament print heads)



HEATED PRESS

ITALPRESSE GL 18 6/400

PLATEN 1800mm x 600mm

​​
